A Stopped Groove in a Dovetailed Box
One
of the greatest challenges in building a box made with through
dovetails are not the dovetails themselves (yes, I know they are
supposed to be the be-all to end-it-all). The greatest challenge is
really the stopped groove that holds the box’s tray bottom.
In a box made with half-blind dovetails it is possible to
hide the open ends of a complete groove in the dovetail itself. But
one cannot do this with a through dovetail since a full groove will
leave gaps in the box ends. The router plane is the ideal tool to
create a stopped groove.

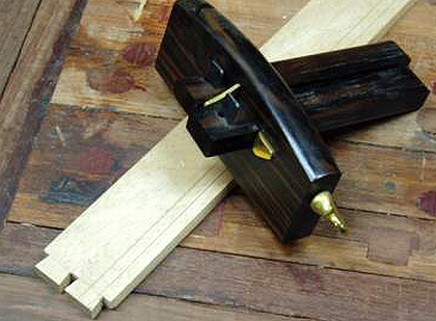

First mark the groove sides with a cutting gauge.

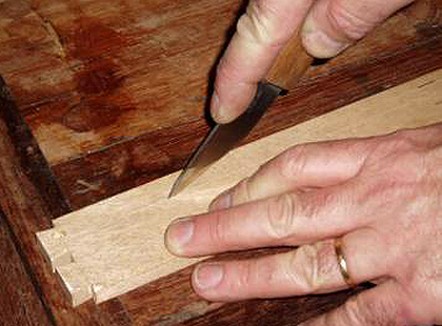

Knife the lines about a 1/16” deep

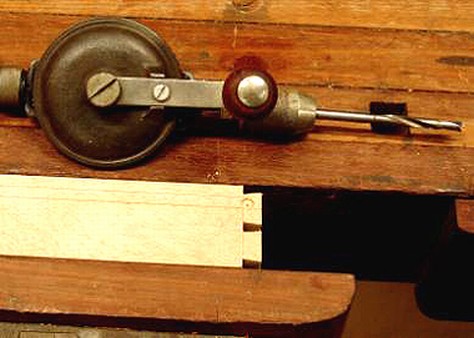

Drill the stopped end (an alternative is to chisel a small mortise).

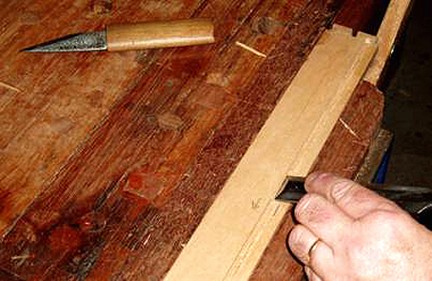

Then chisel out the groove.
Now it is time for the router plane to remove the remainder of the waste. The straight ¼” cutter is used.

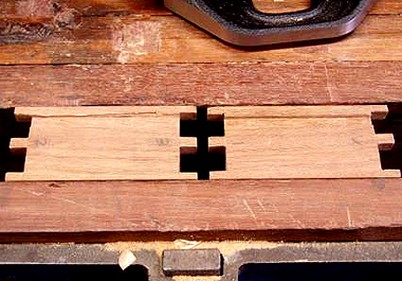

Although the router plane is capable of removing the waste without the aid of a guide, it is advisable to use the fence as well. The end piece on the left, below, shows how I gouged the sidewall. With the fence in place, the router plane will make shavings to rival those of a plough plane.

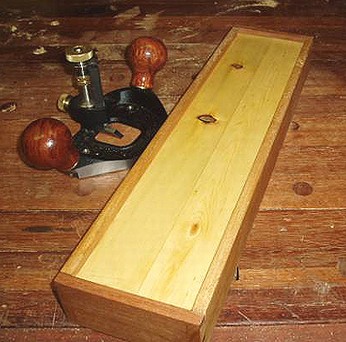

In spite of the slip above, the groove proves to be a nice fit for the bottom piece.

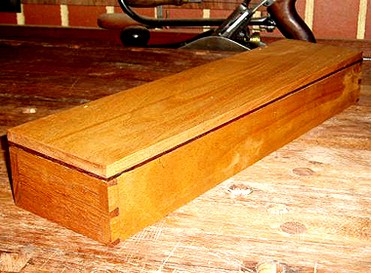

And here is the finished box (and no groove holes!)…
Regards from Perth
Derek
January 2006
