Fritz & Franz vs Parallel Guide
I
recently contributed to a thread on the Fritz and Franz fixture on
the Felder forum. My reply must have made it appear that I no longer
use one, and have instead moved to a parallel guide. I do have and
use a F&F, but mine is a little different, and for reasons which
are explained below. Perhaps this post will help others with short
stroke K3 sliders.
There are two methods (or two fixtures)
to use when ripping on the slider’s wagon. One is a Fritz &
Frans jig, and the other is a Parallel Guide.
My

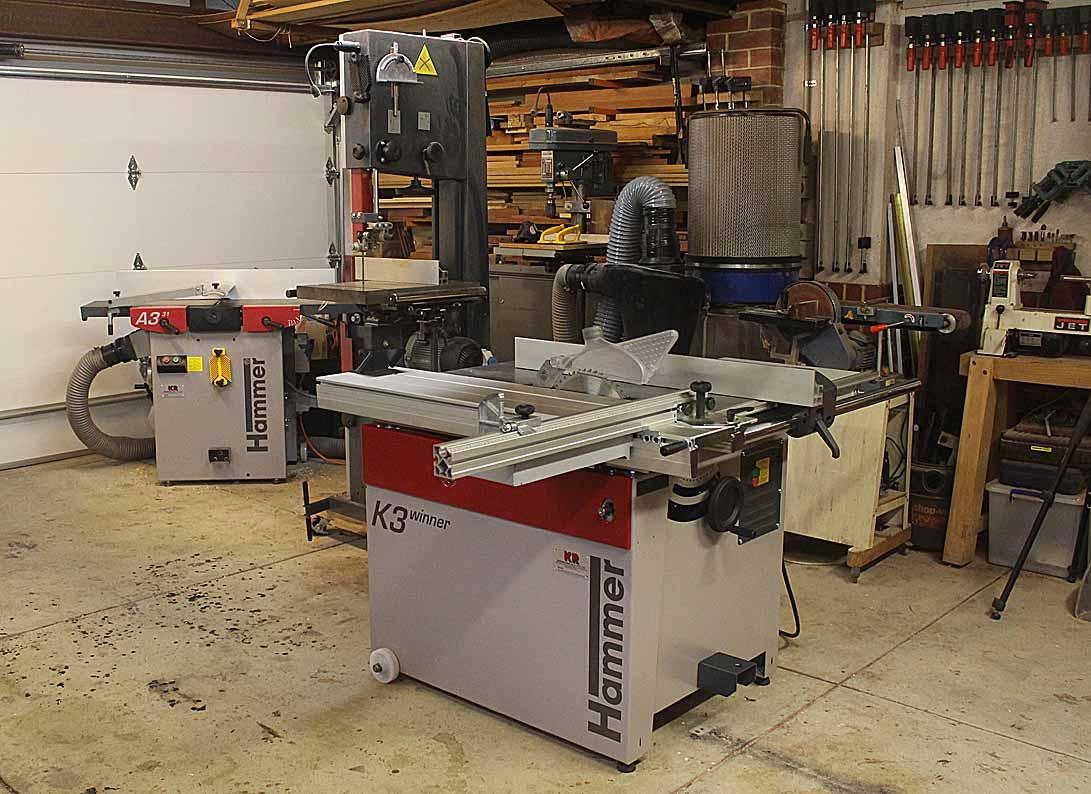

slider is a “short stroke” Hammer K3. This photo was taken
shortly after I received it, about 4 years ago …
There
are two features to this K3 that need to be mentioned in connection
with ripping.
The
reason this is a “short stroke” is that the wagon is shorter than
most sliders. This one is 1250mm long (although it has a cutting
length of 1350mm). The average slider is double this. The reason I
chose for a short wagon is that I only work with solid wood and do
not rip up sheet goods. If I needed to do so, I would break them down
with a circular saw. The K3 has a small footprint, even less that the
contractor table saw which lived here for 20 years.
There
is an even smaller version, with a 830mm slider. One might imagine
that would be too short to rip on, as it may resemble the wagon on
(say) a SawStop, but the fundamental difference is that the slider’s
wagon runs about 1” (or less) the blade. The table saw runs 6-12”
and the wagon is only designed fir crosscutting.
The
second feature of note on my K3 is that the crosscut fence on the
wagon is attached at the start of the wagon. All sliders with full
length wagons attach their fences at the far end. The relevance of
this is that my slider wagon is set up with some features in reverse
- giving it some advantages of a tablesaw.
Here
is a video of a Fritz & Franz jig
…
https://m.youtube.com/watch?v=Q0PyFjtSHrE
The

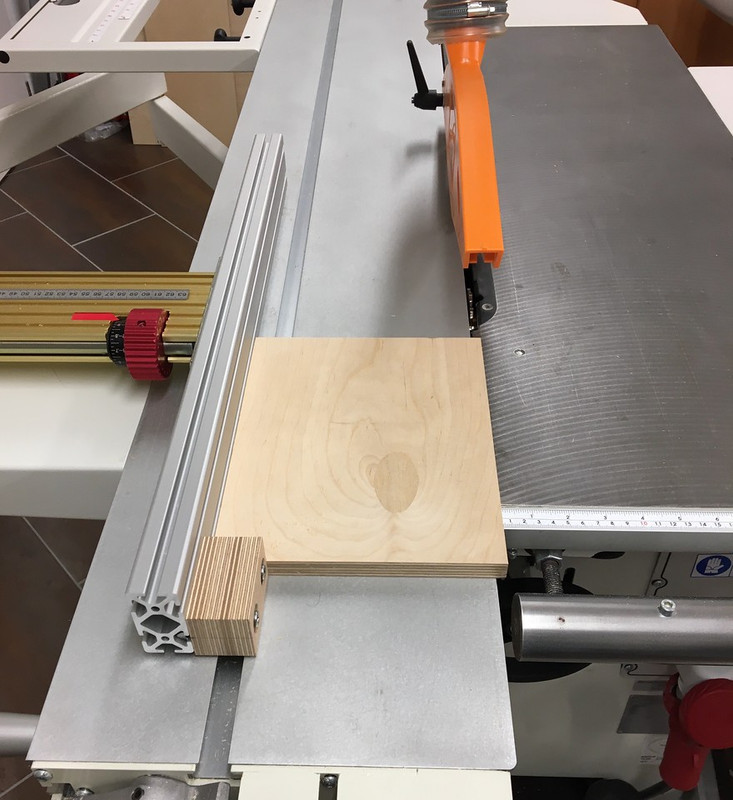

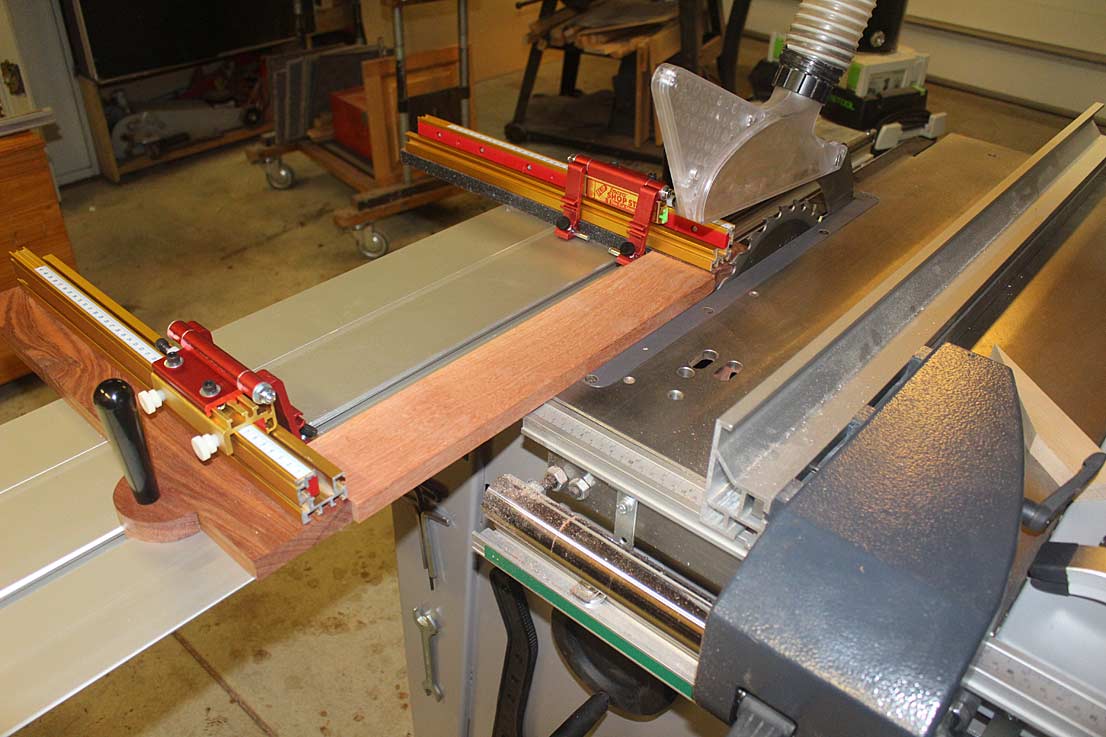

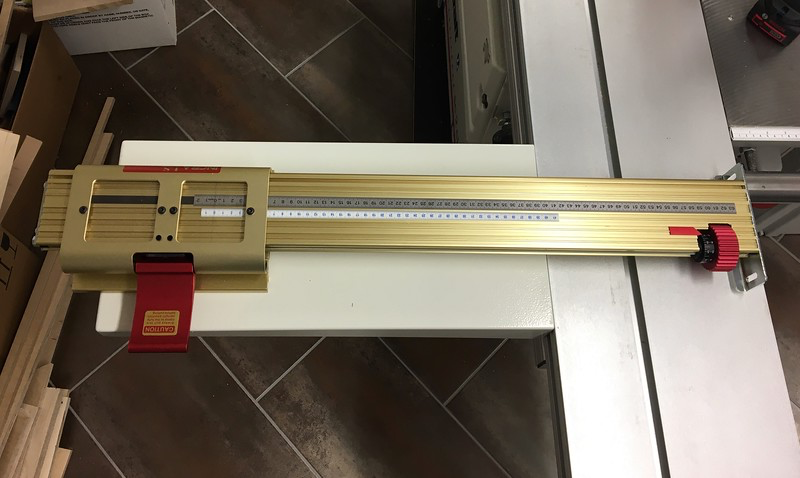

first version of my F&F was used in this way ..

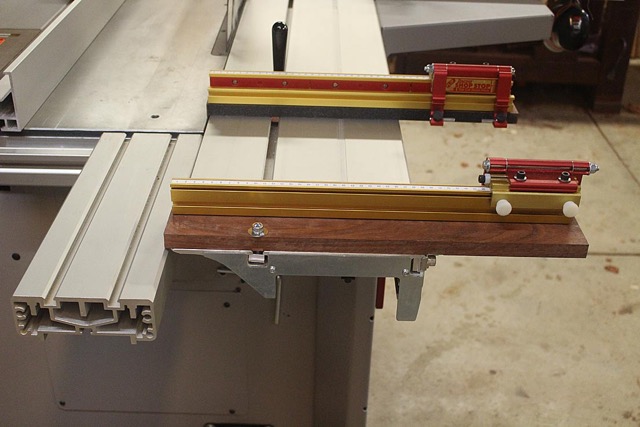

I
needed to set up a fence/stop at the end of the wagon …
This
proved to be extra work - the F&F jig is intended for rapid use.
It occurred to me that, since my K3 wagon was reversed, my F&F
also needed to be reversed.

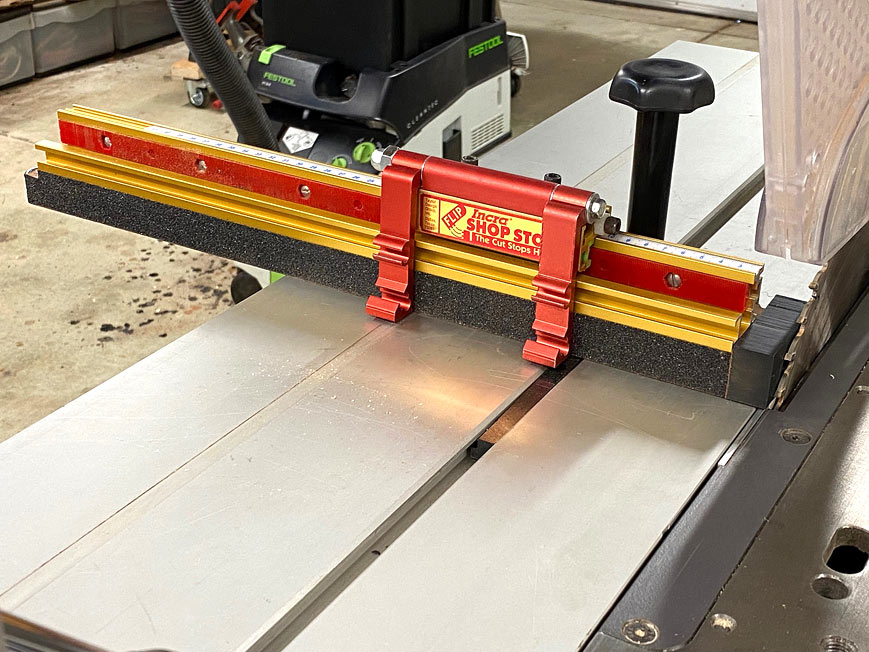

The
main crosscut fence has a zero stop for positioning boards, both for
crosscutting or ripping …

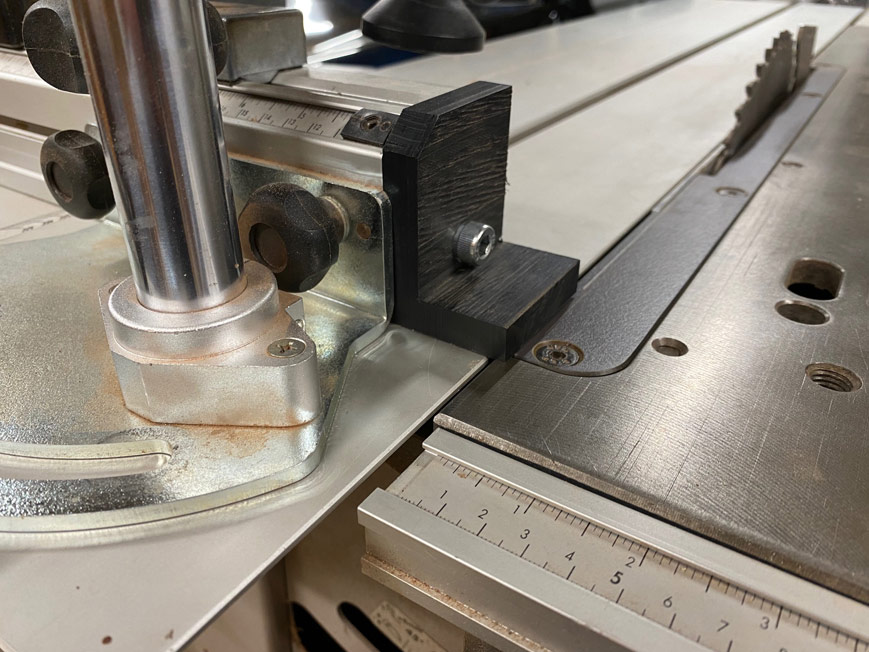

The
other end has a sliding stop, which can be locked down to the track
(since we are pushing against it) …

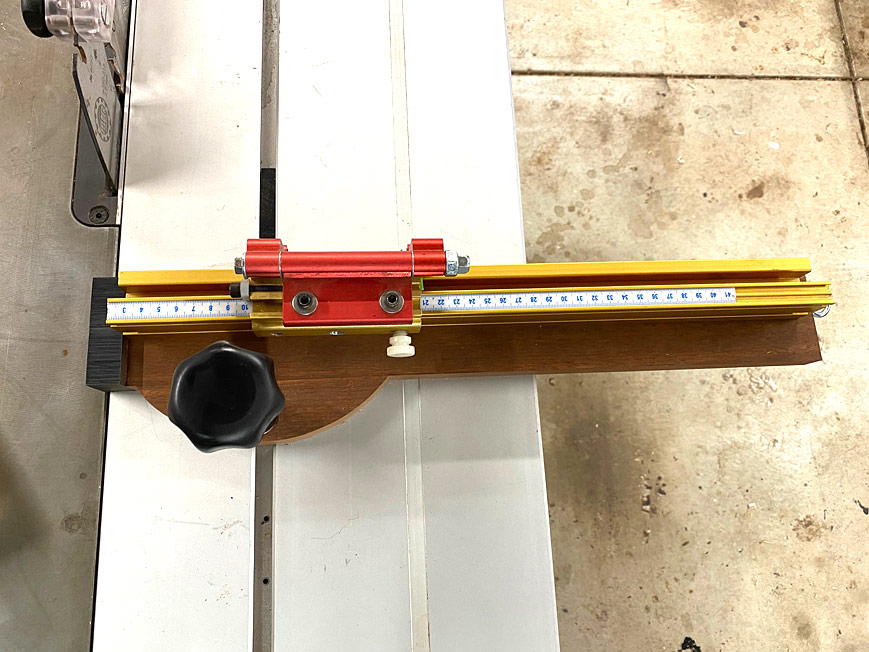

The
front has markings to match the crosscut fence …
While
this F&F works really well - it is possible to rip 1”x1”x1”
safely - I built another fixture for repeated rips and tapers. This
is a parallel guide.
There
is a full write up
here:
http://www.inthewoodshop.com/Powered...rK3Slider.html
Mike

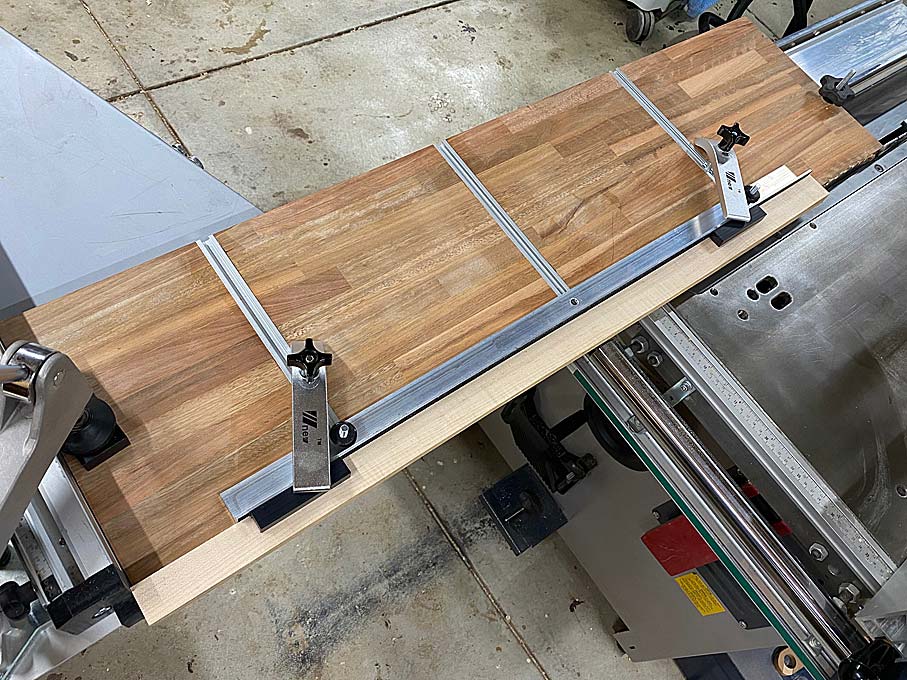

Keinhop built this one ..
This

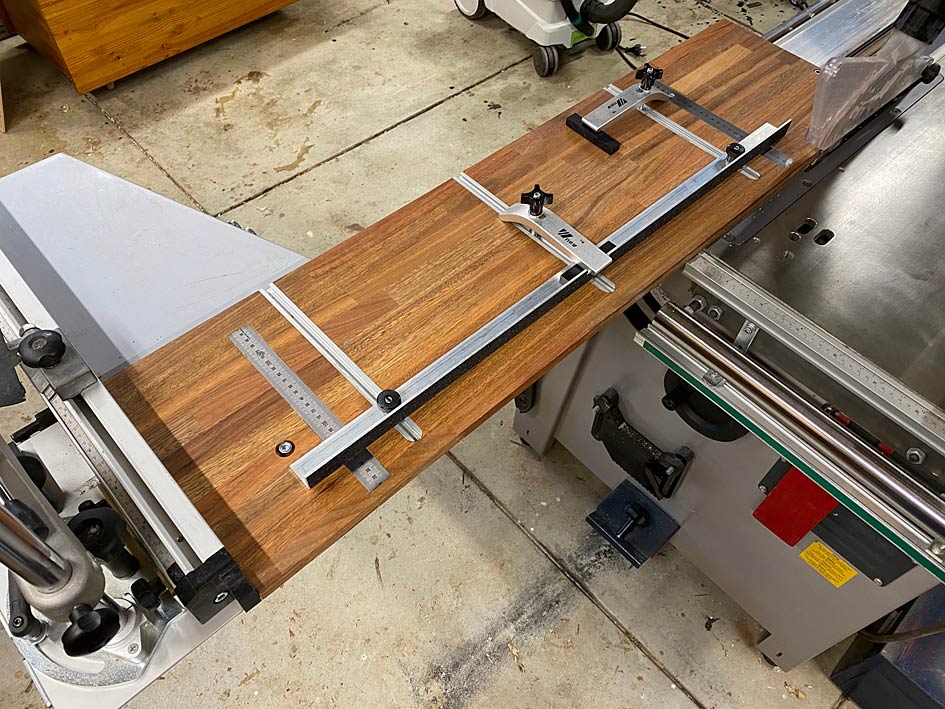

is my version …
Here
demonstrating a narrow rip, but it can do wide boards as well as
tapered legs …
It
may be added that a rip cut can be completed using the rip fence in
the same manner as a table saw. This was my earlier post. However,
rips off a slider, completed on the wagon, produce glue line joints.
A totally different class of cut altogether.
Regards
from Perth
Derek
March 2022
